Quick Details

  • Condition: New
  • Type: Sprial Separator
  • Production Capacity: High
  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: Gelin
  • Model Number: fiberglass
  • Voltage: 0
  • Power(W): 0
  • Dimension(L*W*H): Diffrent Model
  • Weight: 50-800kg
  • Certification: ISO
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application:: Iron,gold,Tin etc..
  • Motor:: Note required
  • Feeding size:: 0.02~0.3mm
  • Weight:: 50~800kgs
  • Feed capacity:: 0.15~8tons per hour
  • Delivery time:: In stock
  • Testing:: Before delivery
  • Training:: Supply
  • Installation: Supply
  • Guarantee:: 1years

Packaging & Delivery

Packaging Details Export packing standard /nude/shipping container
Delivery Time 5-28 days
Product Description

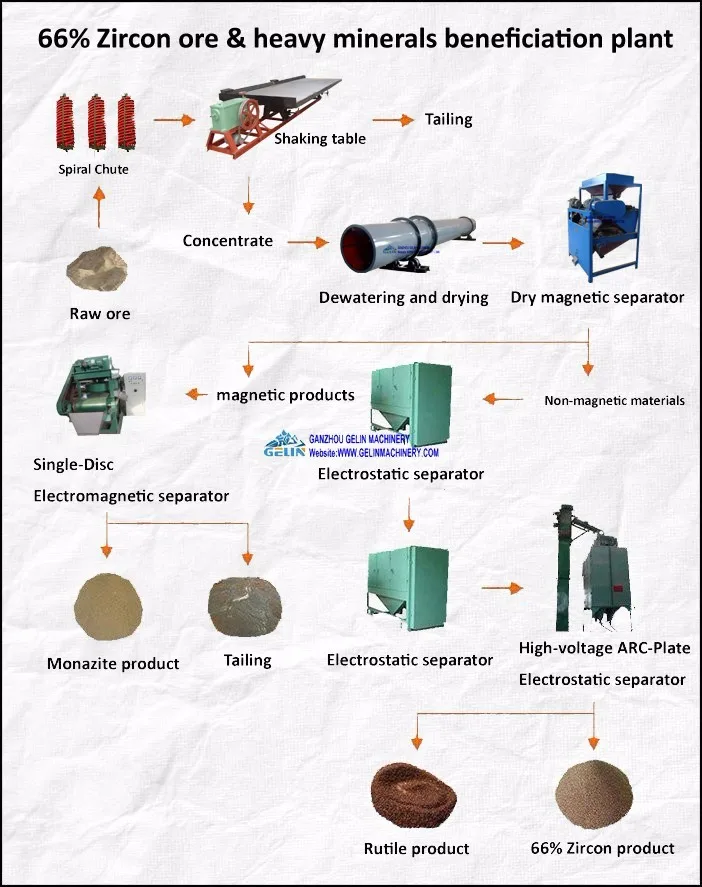

66% Zircon ore & heavy minerals beneficiation plant

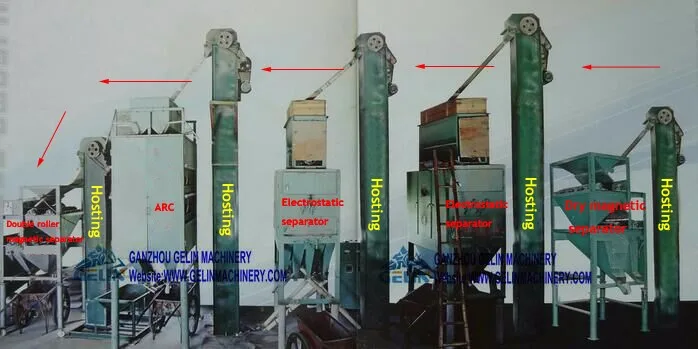

Details specific process flow diagrams of zirconium ore beneficiation plant for zircon sand processing
Mixed beach placer is variety of mixed ore minerals, it should separate mineral step by step though the gravity separation, wet magnetic separation, dry magnetic separation, electric separation. Then we will get ilmenite, monazite, Tin sand, rutile and zircon sand, Iron ore and other finished products, that all have a very high economic value.
Mixed beach placer rough separator benefication process were made up two systems, one is Screen sysytem, the other is Separator system, with the details as below.

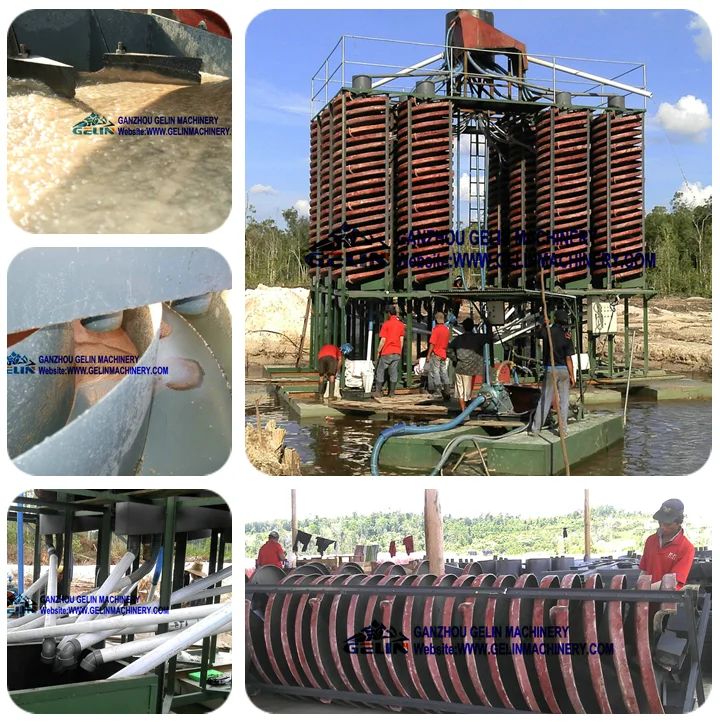

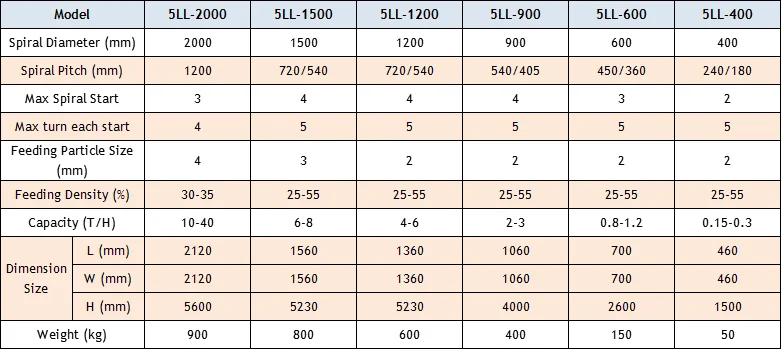

Spiral Separator
This equipment is one of the gravity concentrators, which separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium. It has extremely good performance and effects in processing placer of beach, riverside, seashore and stream. Desen spirals separator are made of polyurethane lined fiber glass with wearable corundum inner surface. Generally there are 5 turns in one start, single, twin, triple and quad starts available per column to suit capacity requirements.

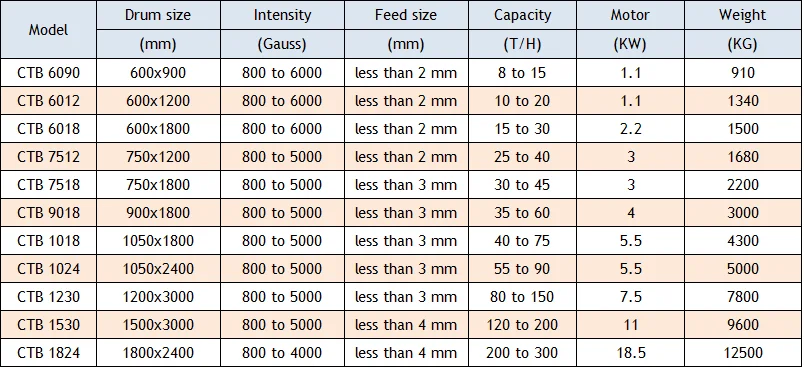

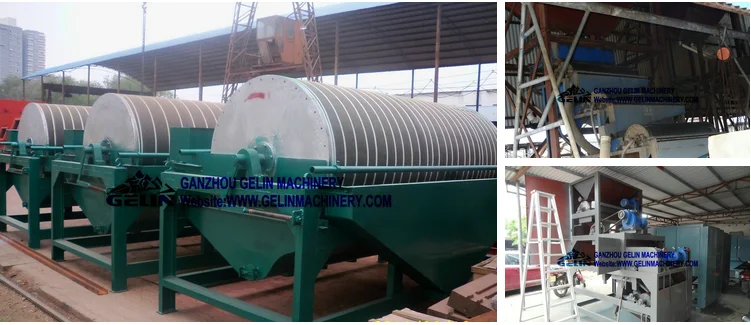

Wet permanent magnetic separator
This product is designed for multi ≤15mm fine grain size of manganese ore wet separation. It widely used in carbonate manganese and oxide manganese separation and limonite etc weak magnetic minerals in the field of magnetic separation.

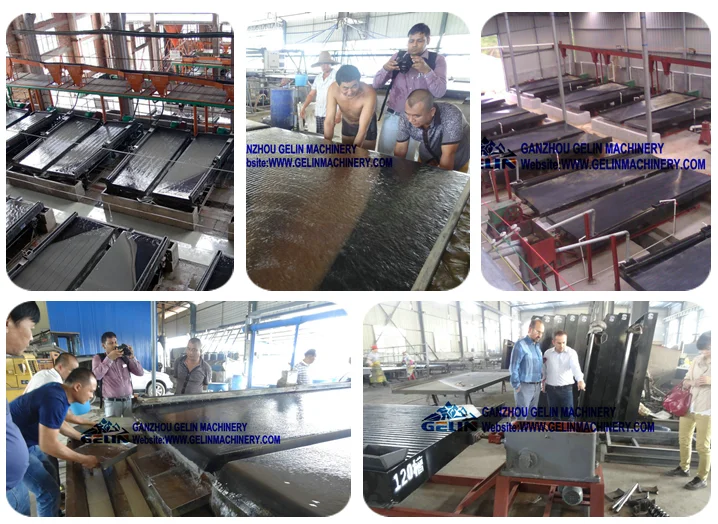

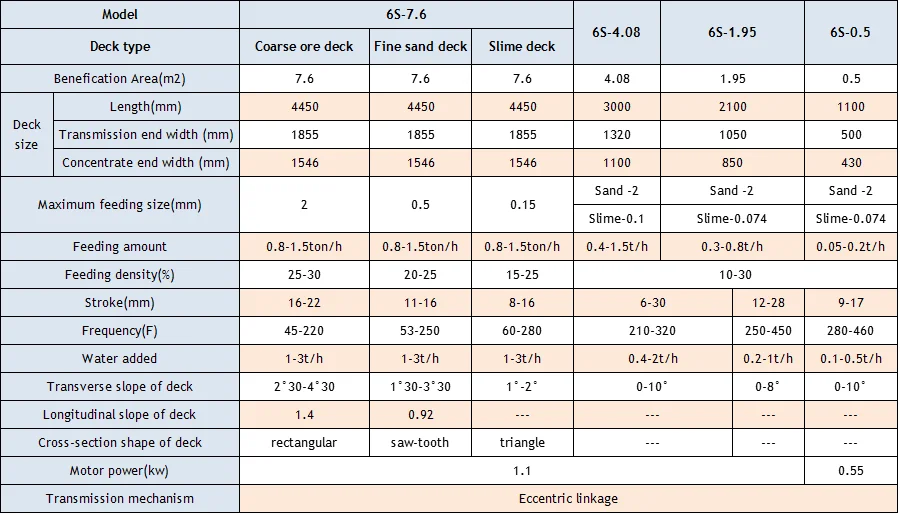

Shaking Table
GELIN Shaker Table is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.
The Shaker Table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.

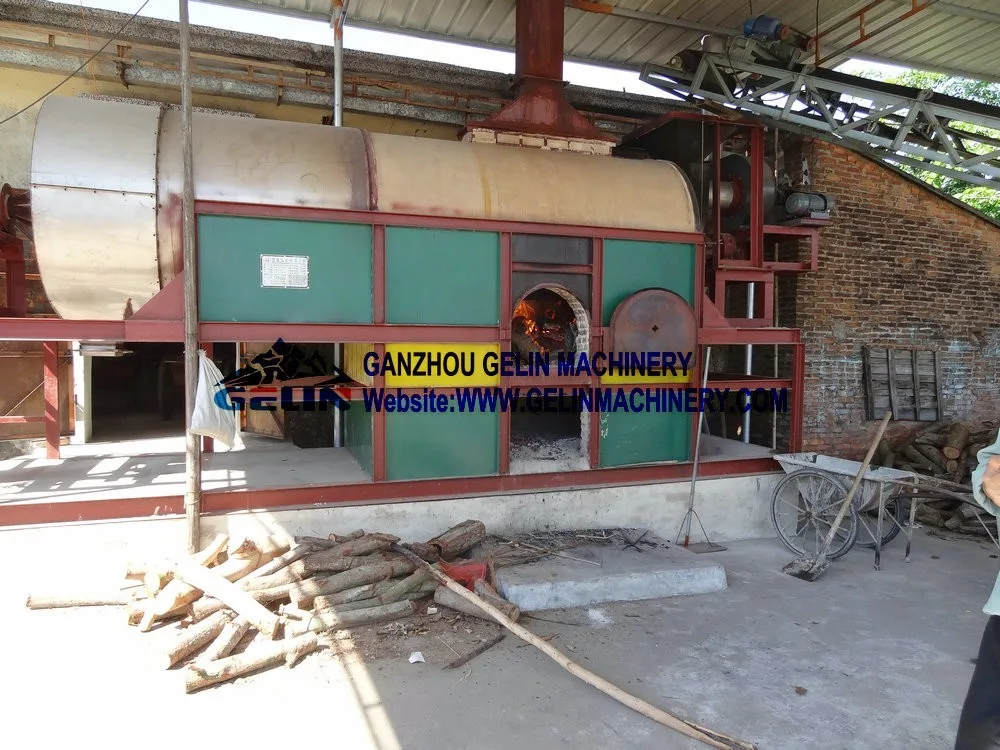

Dryer machine

Dry magnetic separator

The roll type permanent high intensity magnetic separator uses the magnetic source from high performance permanent rare earth elements neodymium, iron and boron through aggregation. This machine is advantaged in light weight, high magnetic field intensity, low power consumption, stable performance and wide applications.
This machine is mainly used for separation and refining of the manganese ore, rare earth, niobium-tantalum, limonite, chromite, titanium ore, zircon, monazite, rutile, garnet and andalusite, as well as for removal of irons from non metallic materials like quartz and feldspar.

Electrostatic separator

High-tension separator (high voltage electricity separator) is an dry separating equipment in the high voltage electric field, which eliminate the mineral according to the differences of materials electricity nature.

The selection of the Non-ferrous metal and black metal, such as iron ore, zircon, cassiterite, ilmenite, rutile, primary limonite, beach placer, manganese ore, titanium, tantalum, niobium, tin, monazite and primar retiles.

ARC Pate separator & Lift
This machine performs separation under the electric intensity and gravity force based on the difference of minerals in their conductivity and the variation of electrostatic force applied on these minerals when they pass through the electric field.
It is suitable to separation of conductive mineral and non conductive mineral, thus to obtain high-grade conductive concentrates and non-conductive concentrates, rutile ore and zircon ore. It may be used in combination with single disc separator, double disc separator , permanent magnetic separator. This machine is equipped with 0-45000v high-voltage generator, so that it can also be used for separating the high phosphorus ore or rutile ore that is difficult to separate.

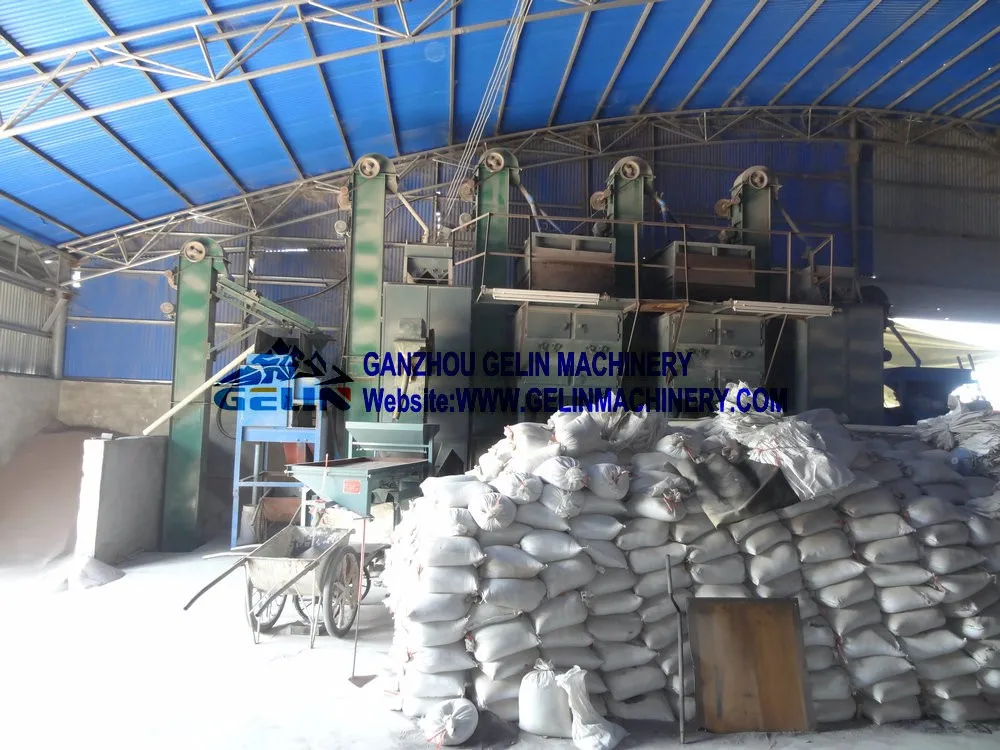

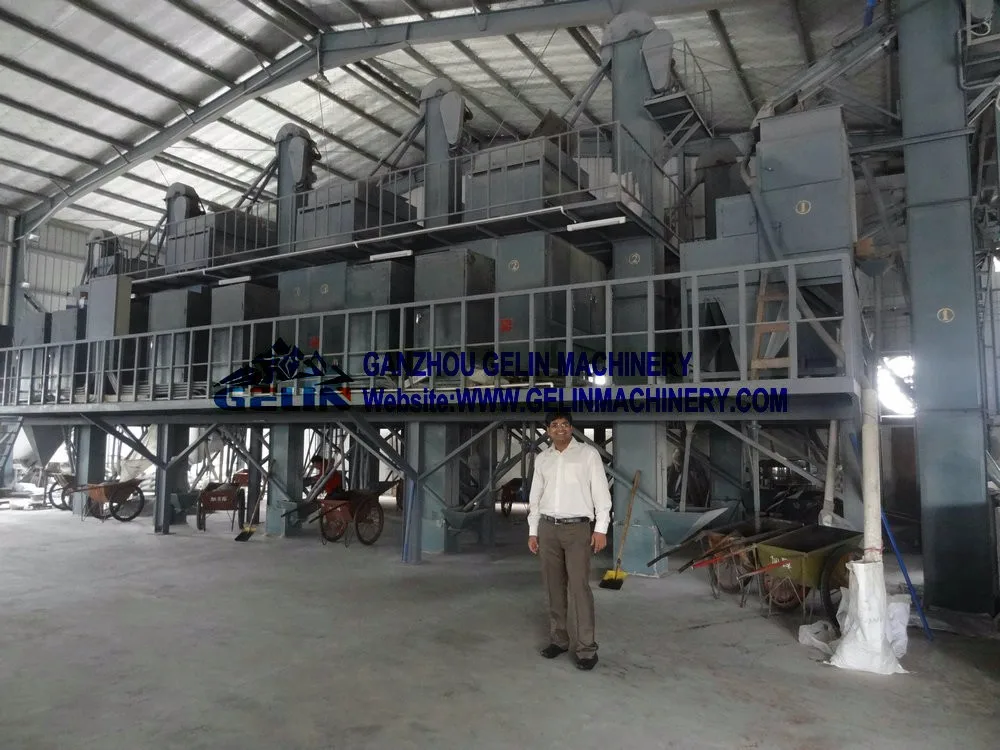

GELIN Successful Zircon processing plant

Related Products

Electrostatic separator

Magnetic separator

Shaking table

Our Company

Ganzhou Gelin Mining Machinery Co., Ltd is an expert manufacturer of mining machines in China. Our company is located in Guzhang Industrial Zone, Shicheng county, Jiangxi province, covering an area of over 30000 square meters, having more than 30 sets of heavy processing equipment and with an annual outpurt of more than 2000 sets of mining machinery.

Experienced mining machinery manufacturer

Our distinctive prodcts include shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect. Our machines are popular in separating GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.

--- PRE-SALE SERVICE ---

1.Based on clients’ request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly;

2.Mine sample testing is available, we welcome the customer send the sample to you for testing by courier, or, the customer take the sample to our factory for testing;

3. Design and provide the complete processing flowchart;

4. Design & manufacturer products according to clients’ demands.

--- AFTER-SALE SERVICE ---

1.Pre-check and test the products before delivery;

2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;

3.Trace the status of the shipping until the products received;

4.Prepare required documents to let clients pass custom clearance;

5.Dispatch experts to carry out below service on site:
1) Installation & debug of the machinery
2) Train the first-line operators & technical personnel

3) Carry out any other service clients may need

6. Provide technical exchanging & spare parts for life-long term

--- ONE STOP SOLUTION ---

1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;

2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;

3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.

Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.

 A:1). What type is the mining? Is it rock stone? or it is sand?
    2). If rock stone,What is the general particle size(mm) of the raw ore?
    3). What is the handling capacity(tons per hour) you plan to work with?
    4).What is the elements of the raw ore? How much percent % of each minerals?

Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?

A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.

Q: How long is the warrenty of your equipments? Does your company supply the spare parts?

A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.

Q: If i need the complete mineral processing line. is Gelin able to help us build it?

A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.

Welcome you visit our factory in your free time!
