Gravity machines vibrating table & spiral separator for different minerals concentration

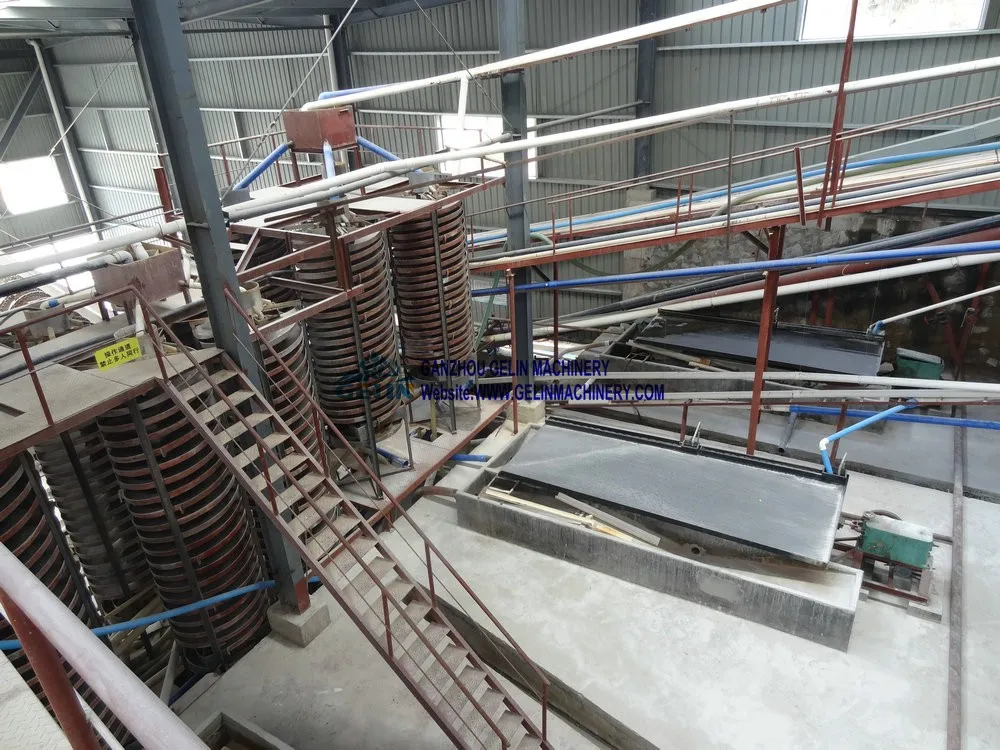

Spiral Chute and Shaking Table are two of the main equipments of gravity concentration. They are widely used for mining rough concertration and clean concertration, which applied for River sand, Beach sand, Black sand, Crushing/ Grinding minerals, such as gold, Zircon, Magnetic iron ore, ilmenite, chromite, tin, tungsten, copper, coltan, tantalum, niobium, lead, zinc etc... , also other rare metals and the noble metal ore.

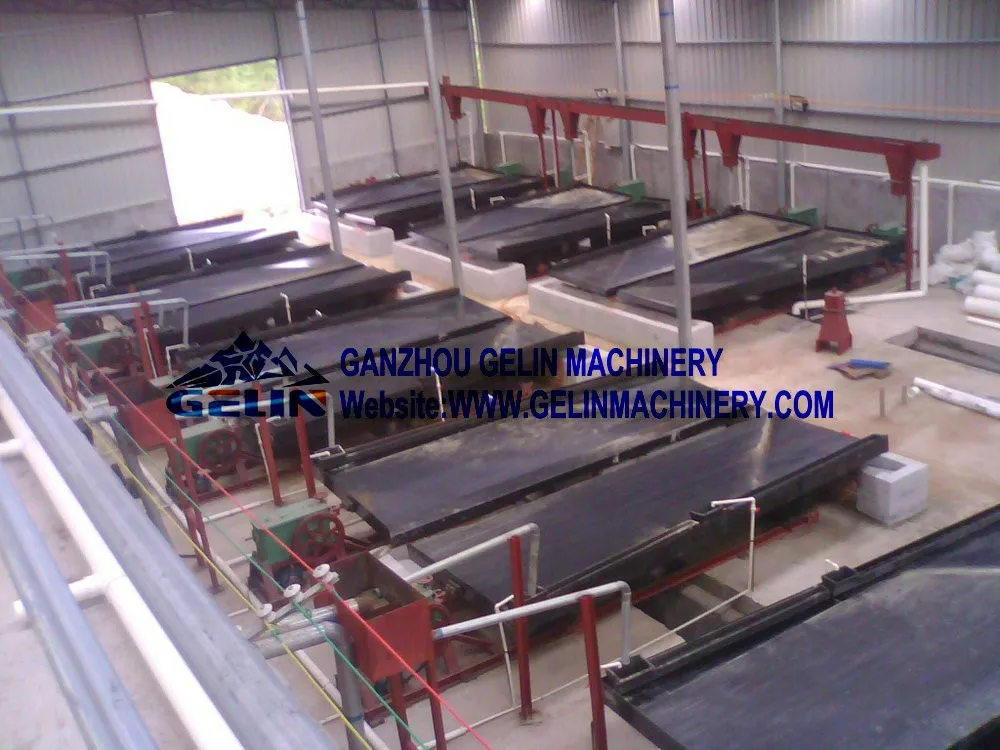

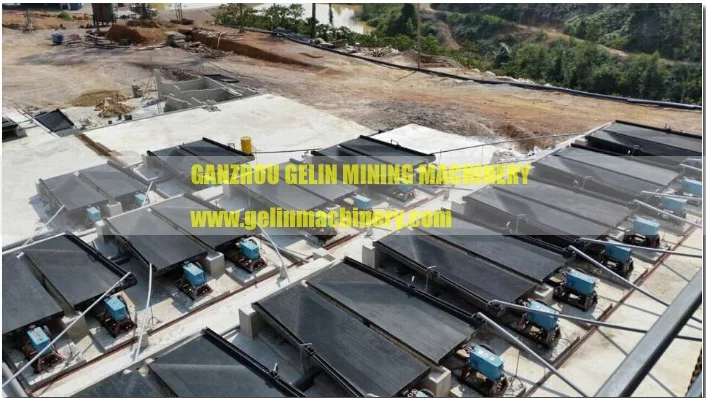

Shaking Table, Table Concentrator GELIN Shaker Table is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. The Shaker Table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.
Features 1.High Recovery Ratio 2. High Concentration Ratio 3. Easy Installation 4. Simple Operation 5. Deck constructed of fiber glass 6. Seven different decks to choose 7. Long working life
8. Adjustable stroke length and speed
Product application Gold refining Shaking Table as one of gravity mining equipment, 6S shaking table is widely applied on separating Gold, Manganese, Chrome, Lead, Zinc, Mercury, Auluminum and rare metals, the noble metal ore, also applied on sorting coal, ect.6S shaking table can be usedin different stages in mining, like rough concentration, retreat and scanvenging. Recovery material size ranges are: coarse sand (0.5 mm to 2 mm), fine sand (0.074 mm to 0.5 mm) and slime (-0.074 mm). Effective mineral recovery size range is 0.22 mm to 2 mm.

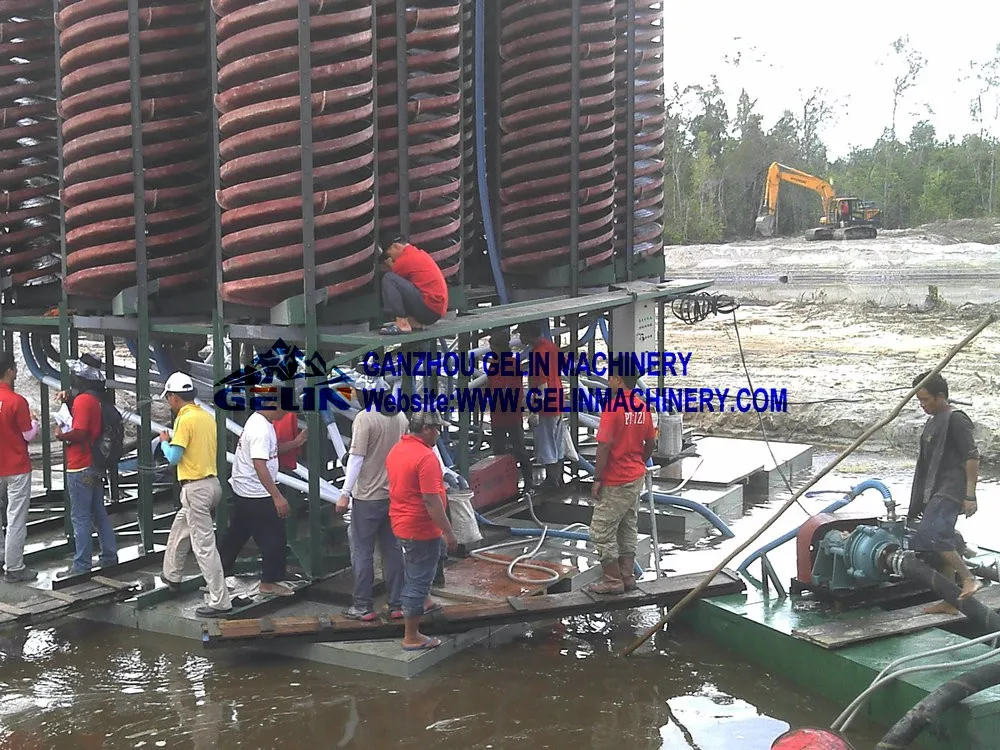

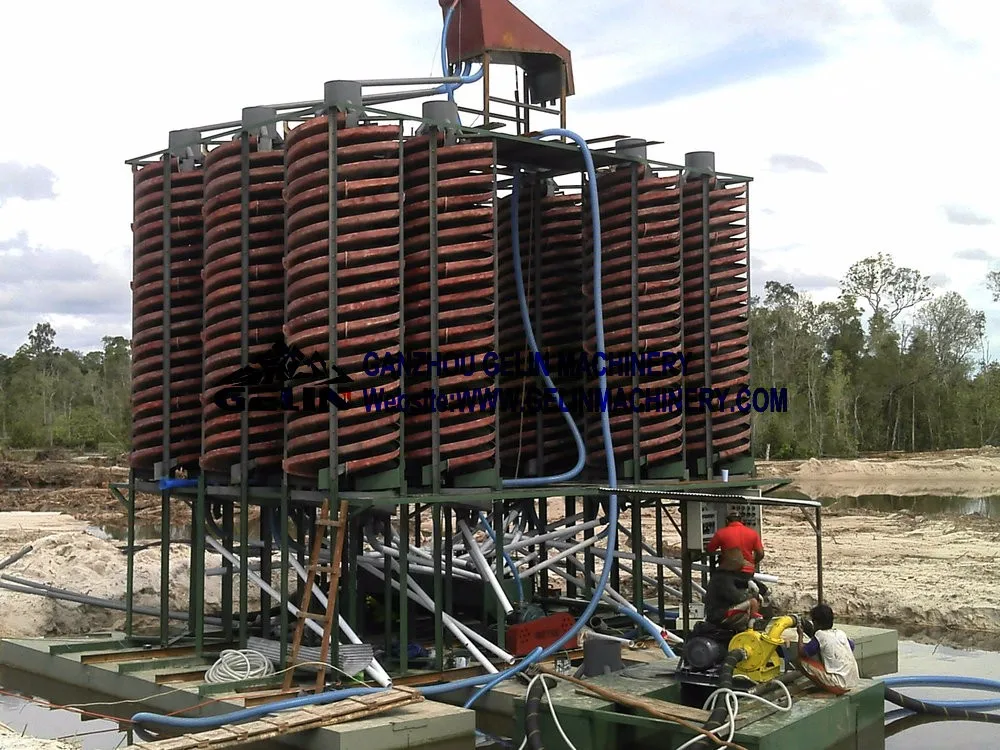

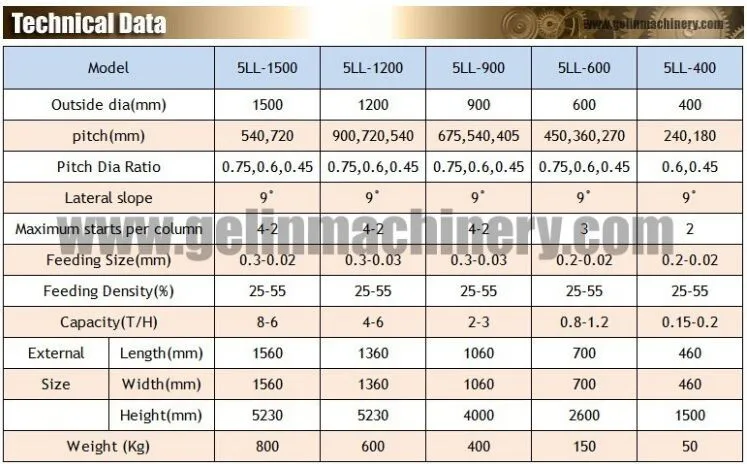

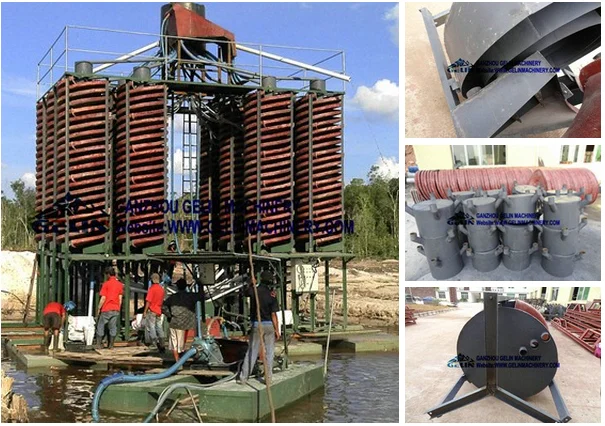

Spiral Chute, Spiral Separator Spiral concentrator is our company's concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream. The product is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.
Features 1.Reasonable structure and small occupation area. 2. High recovery, high efficiency, and precise separation. 3. Light in weight, rust and corrosion resistant. 4. Simple installation and Minimal maintenance requirements. 5. Low operating cost and long operating life. 6. Reliable running with minimal operator attention. 7. Strong adaptability to fluctuation of feeding amount, density, size and grade.

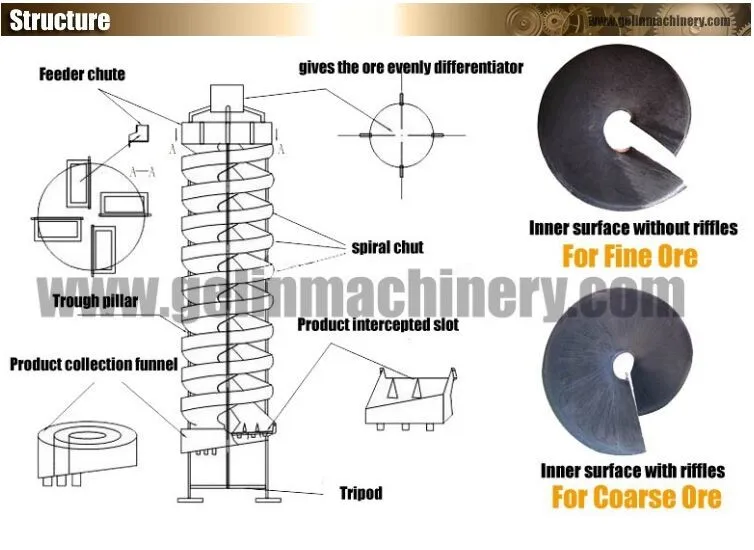

Working principle : Spiral Chute is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.

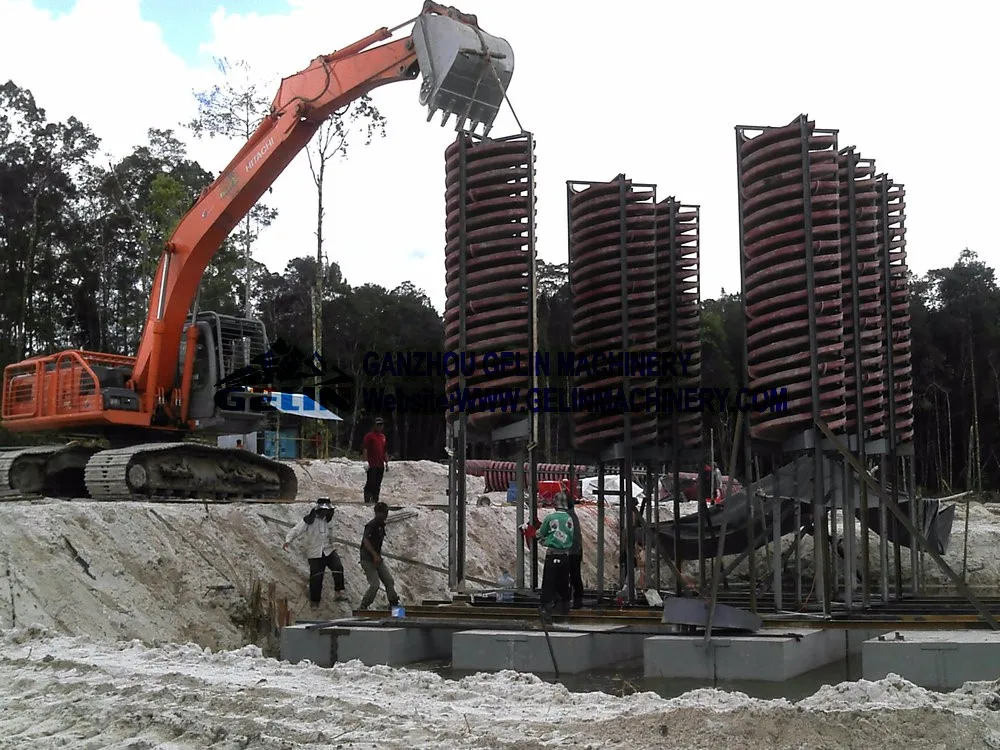

It is applicable for separation of granularity ranged from 4mm to 0.02mm metallic minerals such as iron, ilmenite, chromite, tungsten-tin ore, niobium-tantalum ore, gold placer, seashore monazite, rutile and zircon as well as other metallic and non-metallic minerals with adequate difference of specific gravity. For the seaside, riverside, sand beach, the stream of placer mining, it is the best equipment of all.
- Electrostatic Separator
It elliminate the mineral according to the differences of materials electricity nature.
- Gold Trommel Screen
This machine is designed for processing alluvial gold mine, river and sand gold, placer gold, ect.
- Gold Centrifugal Concentrator
It is a relatively new type of gravity concentration apparatus.
Ganzhou Gelin Mining Machinery Co., Ltd is an expert manufacturer of mining machines in China. Our company is located in Guzhang Industrial Zone, Shicheng county, Jiangxi province, covering an area of over 30000 square meters, having more than 30 sets of heavy processing equipment and with an annual outpurt of more than 2000 sets of mining machinery.
Experienced mining machinery manufacturer
Our distinctive prodcts include shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect. Our machines are popular in separating GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.
--- PRE-SALE SERVICE ---
1.Based on clients’ request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly;
2.Mine sample testing is available, we welcome the customer send the sample to you for testing by courier, or, the customer take the sample to our factory for testing;
3. Design and provide the complete processing flowchart;
4. Design & manufacturer products according to clients’ demands.
--- AFTER-SALE SERVICE ---
1.Pre-check and test the products before delivery;
2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;
3.Trace the status of the shipping until the products received;
4.Prepare required documents to let clients pass custom clearance;
5.Dispatch experts to carry out below service on site: 1) Installation & debug of the machinery 2) Train the first-line operators & technical personnel
3) Carry out any other service clients may need
6. Provide technical exchanging & spare parts for life-long term
--- ONE STOP SOLUTION ---
1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;
2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;
3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.
—We have passed ISO9001:2008 Quality System certification. —Our products have obtained the title of "China High Quality Well-Known Products". —Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, India,the Middle East, the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada and Australia. —We have won high reputations from all of our clients for our machines and services.
Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
A:1). What type is the mining? Is it rock stone? or it is sand? 2). If rock stone,What is the general particle size(mm) of the raw ore? 3). What is the handling capacity(tons per hour) you plan to work with? 4).What is the elements of the raw ore? How much percent % of each minerals?
Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
Q: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
Q: If i need the complete mineral processing line. is Gelin able to help us build it?
A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need. There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.
