Quick Details

  • Condition: New
  • Type: Sprial Separator
  • Production Capacity: High
  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: Gelin
  • Model Number: spiral concentrator
  • Voltage: 0
  • Power(W): 0
  • Dimension(L*W*H): Diffrent Model
  • Weight: 50-800kg
  • Certification: ISO
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Guarantee: 12 months
  • Quality: iso9001:2008
  • Application: ilmenite sand ore, zircon ore, gold, iron

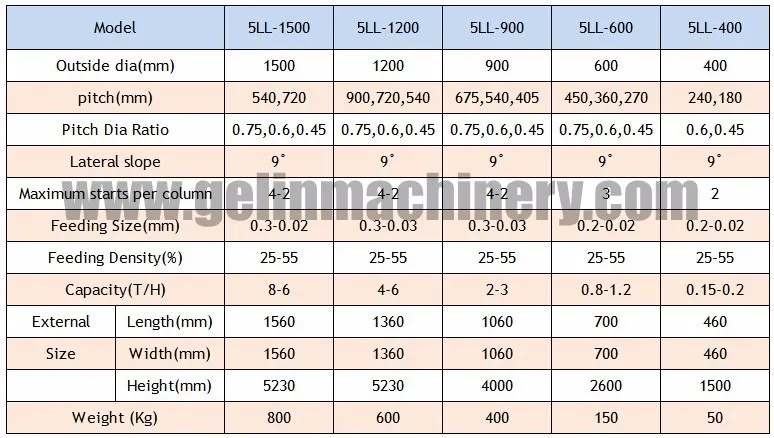

  • Model: 5 models available
  • Feed size: -4mm
  • Capacity: 3-8 tons /hour
  • Material: fiberglass
  • After sale service: best
  • Color: as request
  • Original: China

Packaging & Delivery

Packaging Details nude / container
Delivery Time 5-28 days
Product Description

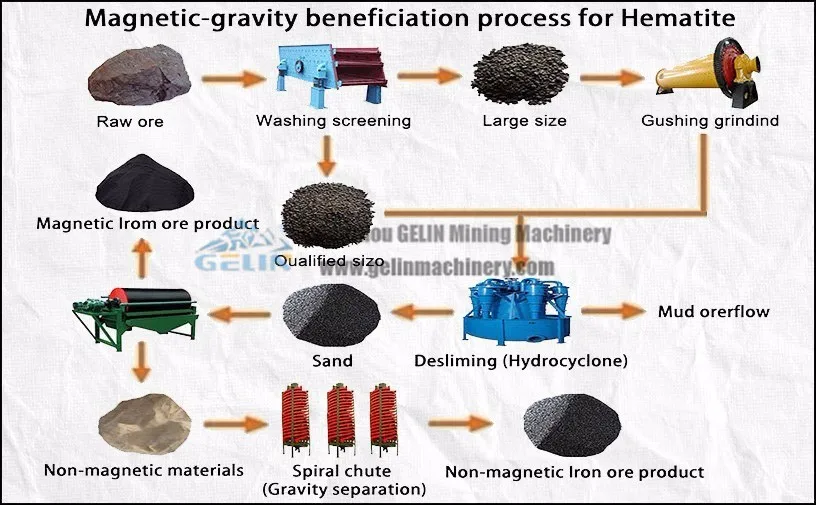

Magnetic-gravity beneficiation process for Hematite
Hematite proess plant Mineral separator equipments were made up two systems, one is Crusher system, the other is Separator system, with the details as below

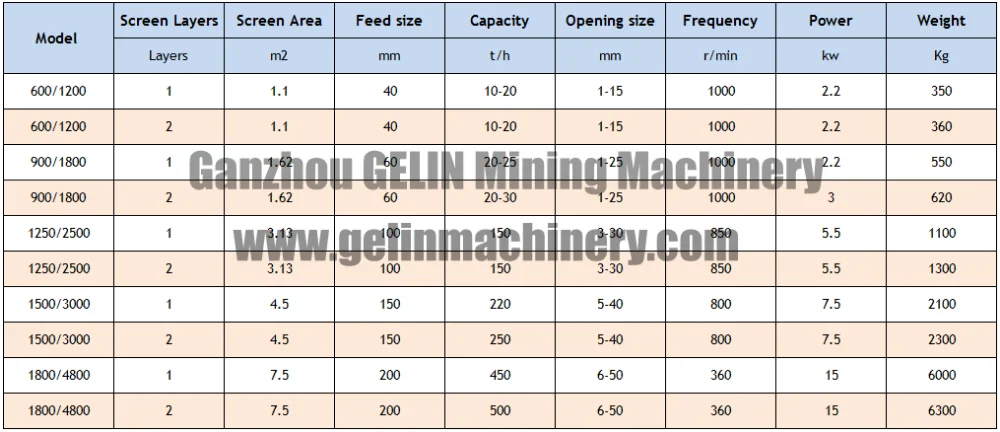

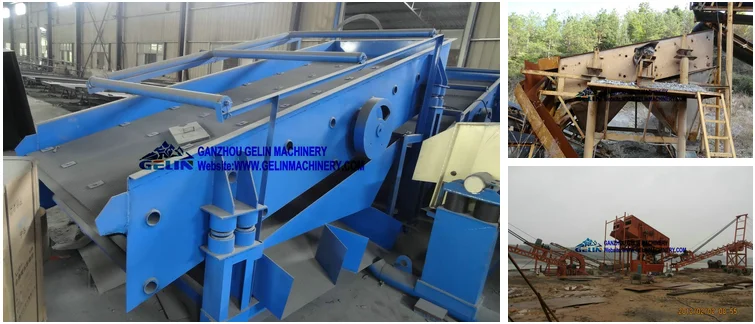

Vibrating screen
Vibrating Screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet repectively. It can be used in the automatic production line.

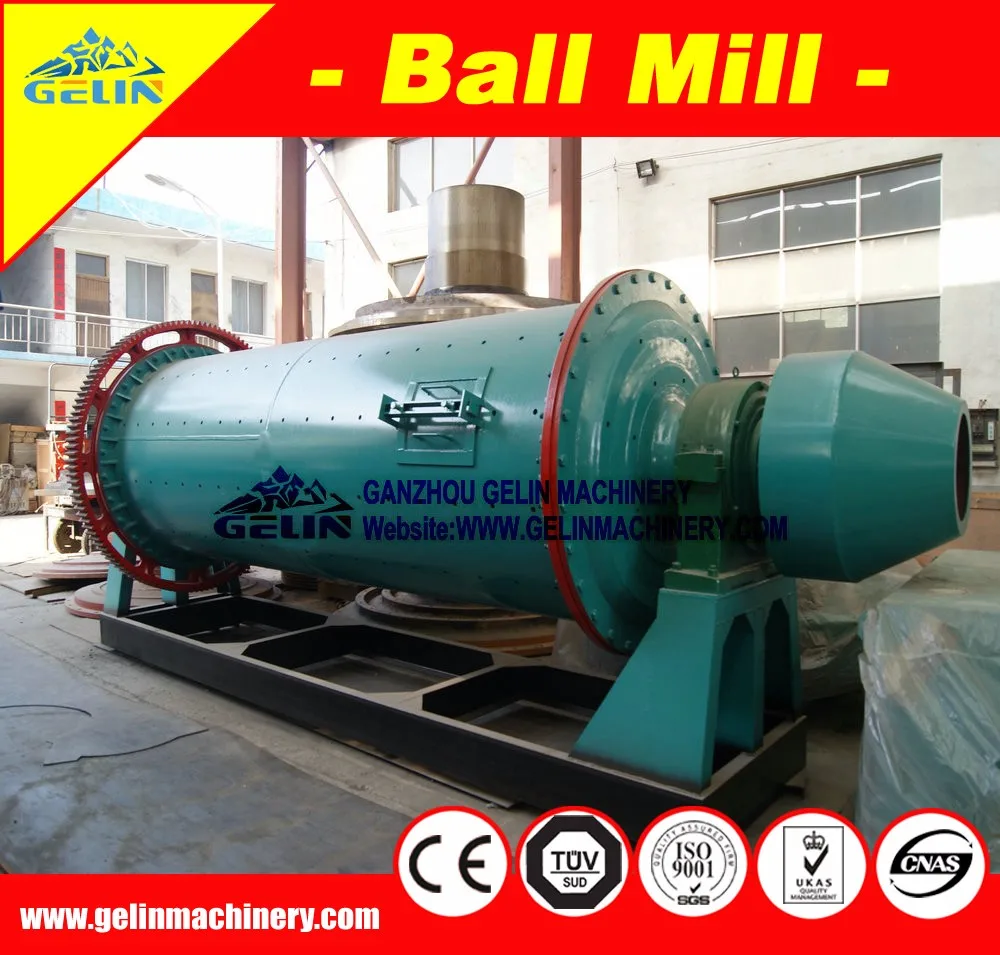

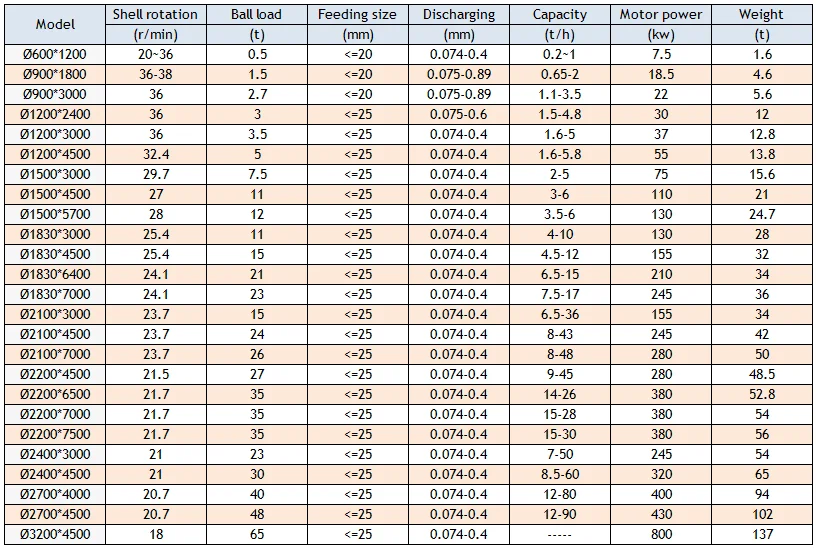

Ball mill
Ball mill is the key re-crush eqipment after the crushing. Ball mill is widely used in cement, silicate products, new building materials, refractories, chemical fertilizer, black and non-ferrous metal ore-dressing, as well as the production industry of glass or ceramics, for carry though dry or wet grinding of a variety ores and other materials.

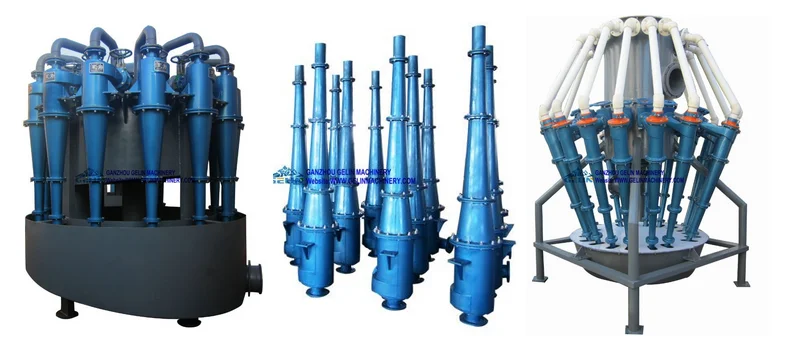

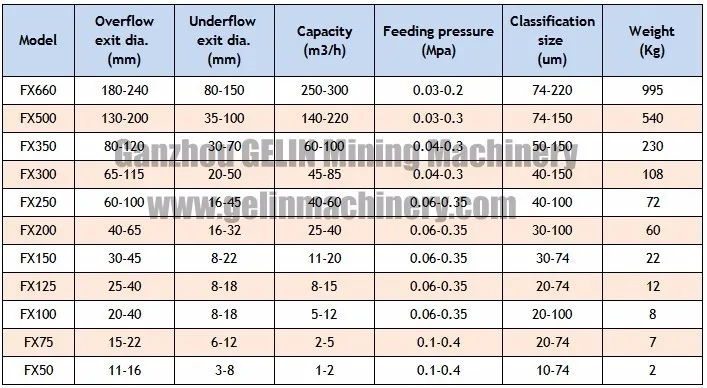

Hydrocyclone
Hydrocyclone Seperator has been widely applied in ferrous and non-ferrous metal mines, GELIN cyclones’ workmanship have become very mature in mine industry application like grinding & classification, thickening, dewatering, desliming, fine material classification as well as tailings backfill, damming and stacking and also has leading technical advantages in the industry.

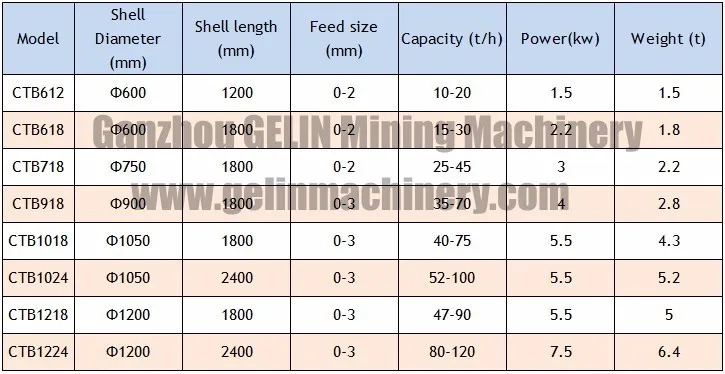

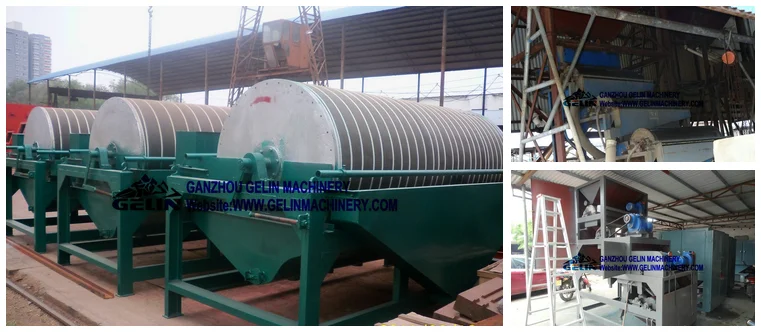

Wet permanent magnetic separator
This product is designed for multi ≤15mm fine grain size of manganese ore wet separation. It widely used in carbonate manganese and oxide manganese separation and limonite etc weak magnetic minerals in the field of magnetic separation.

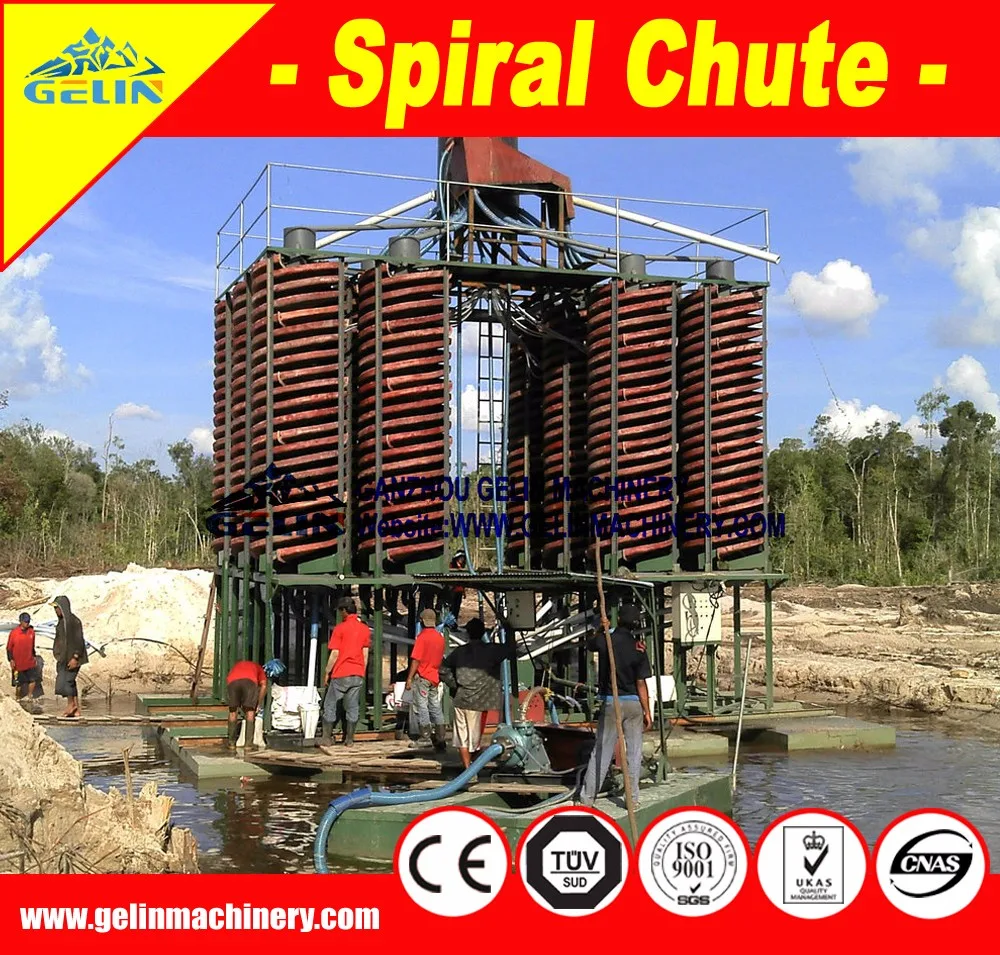

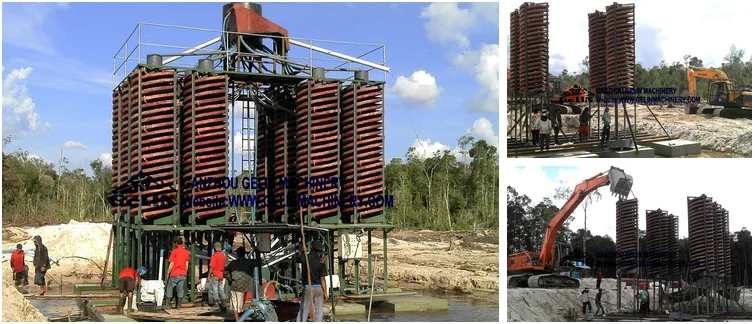

Spiral Chute
GELIN spiral chute is one of the gravity concentrators, which separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium. It has extremely good performance and effects in processing placer of beach, riverside, seashore and stream. Desen spirals separator are made of polyurethane lined fiber glass with wearable corundum inner surface. Generally there are 5 turns in one start, single, twin, triple and quad starts available per column to suit capacity requirements.

Related Products

Ball mill

Spiral chute

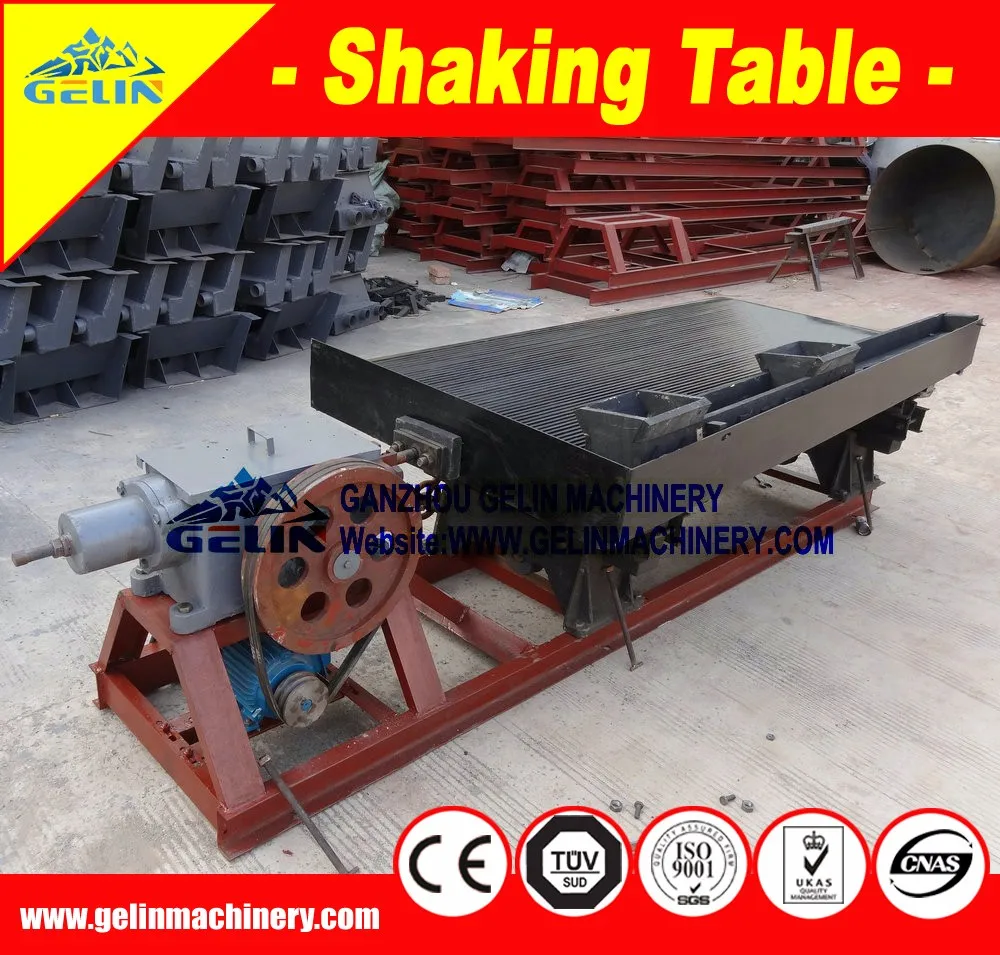

Shaking table

Our Company

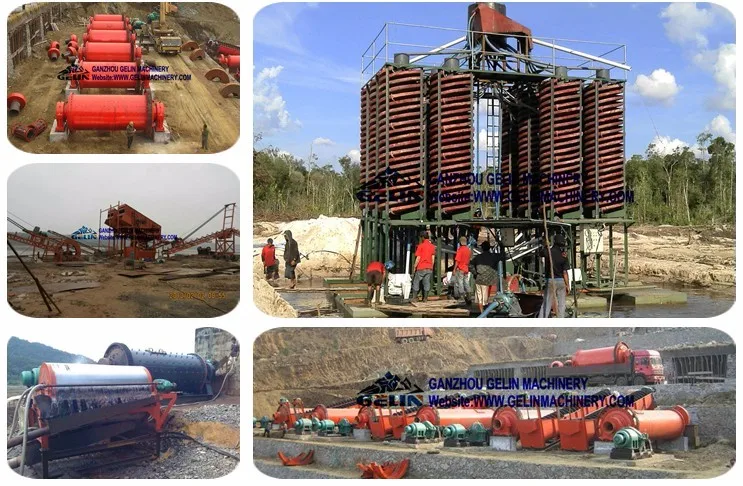

Ganzhou Gelin Mining Machinery Co., Ltd is an expert manufacturer of mining machines in China. Our company is located in Guzhang Industrial Zone, Shicheng county, Jiangxi province, covering an area of over 30000 square meters, having more than 30 sets of heavy processing equipment and with an annual outpurt of more than 2000 sets of mining machinery.

Experienced mining machinery manufacturer

Our distinctive prodcts include shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect. Our machines are popular in separating GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.

--- PRE-SALE SERVICE ---

1.Based on clients’ request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly;

2.Mine sample testing is available, we welcome the customer send the sample to you for testing by courier, or, the customer take the sample to our factory for testing;

3. Design and provide the complete processing flowchart;

4. Design & manufacturer products according to clients’ demands.

--- AFTER-SALE SERVICE ---

1.Pre-check and test the products before delivery;

2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;

3.Trace the status of the shipping until the products received;

4.Prepare required documents to let clients pass custom clearance;

5.Dispatch experts to carry out below service on site:
1) Installation & debug of the machinery
2) Train the first-line operators & technical personnel

3) Carry out any other service clients may need

6. Provide technical exchanging & spare parts for life-long term

--- ONE STOP SOLUTION ---

1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;

2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;

3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.

Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.

 A:1). What type is the mining? Is it rock stone? or it is sand?
    2). If rock stone,What is the general particle size(mm) of the raw ore?
    3). What is the handling capacity(tons per hour) you plan to work with?
    4).What is the elements of the raw ore? How much percent % of each minerals?

Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?

A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.

Q: How long is the warrenty of your equipments? Does your company supply the spare parts?

A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.

Q: If i need the complete mineral processing line. is Gelin able to help us build it?

A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.

Welcome you visit our factory in your free time!

For more details, please refer to our website: www.gelinmachinery.com
