Quick Details

  • Condition: New
  • Type: electricity separator
  • Production Capacity: High
  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: Gelin
  • Model Number: electricity separator
  • Voltage: Clients Local Standard
  • Power(W): 1.1/3kw
  • Dimension(L*W*H): 2090*1020*3100-2540*1246*3320mm
  • Weight: 2000/2300kg
  • Certification: ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Guarantee: one year
  • Application: zircon sand, tin
  • Quality: high
  • Name: Electrostatic separator
  • Installation: Engineer Guide
  • Color: Customers' Requirements
  • Capacity: 1.1/3kw
  • Material: Steel

Packaging & Delivery

Packaging Details Nude / Steel packing / Container
Delivery Time 2
Product Description

High-voltage Electrostatic Separator for Zircon Heavy Sand

Description

HTS Electrostatic Separator.
High-voltage electricostatic separator is one of the main equipments for electric separation.It adops the different electrical property of all minerals and materials in the nature to realize the separation.The common minerals like ilmenite,magnetite,cassiterite,and native gold etc,have good conductivity property while quartz,zircon,feldspar,calcite,scheelite,and silicate minerals have poor conductivity property,then the electric separator adopts their different electrical property to realize the separation.

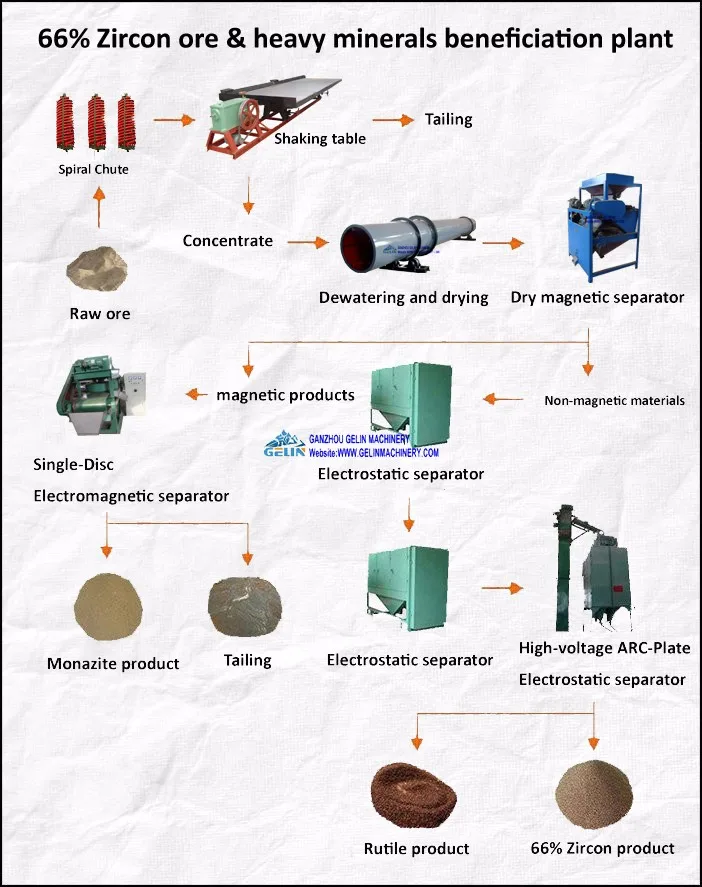

Combined with permanent magnetic separator in the process flow of separating titanium-zirconium minerals,better effect can be achieved.The struture of the machine is made up of feeding device(including hoisting machine and heating chamber),ground roller,arc-shaped corona electrode,deflecting electrode,ore-transmitting board,high-voltage current,and electric control cabinet.The machine has reasonable structure,advanced technique,convenient electric operation,perfect protection,and high automation;moreover,it is safe,reliable,attractive and novel.Because of its good effect,the product also export to many distant market area such as Australia,Indonesia,South Africa,Vietnam and other foreign market and obtain good reputation.

Features:
♦ With the reasonable structure, advanced technology,
♦ convenient operation, complete protection,
♦ high degree of automation, safety and reliable, with better separating effect.
♦ Separation of high accuracy, can make the 120 mesh mineral to 2 mm.
♦ High degree of automation, to achieve the feeding, heating, speed adjustment, high-pressure discharge, with high security.

Working principle:
The Electrical sorting method used the differences of conductive of different mineral, Under the influence of electric field, mineral particles are subject to electrical and mechanical forces(centrifugal force, gravity, drag) role, then they produce different tracks that make them to be separated, so we can achieve the purpose of sorting.
When the temperature heated to 40°C-60°C after entered into the bin. the mineral particles enter into the power corona areas with the rotation roller shafts along the rotating feed roller(Grounding Electrode)surface, Corona current makes all the mineral particles(conductors and non-conductors) obtain negative charge, Because of low contact resistance. with the rotating feed roller, the conductor’s charges transfer by the roller away quickly, Under the action of mechanical forces, conductors escape away from the roller, and enter into the mineral hopper(conductors), At the same time, because of higher contact resistance with the rotating feed roller, the non-conductors’charges couldn’t transfer by the roller away as quickly as conductors’, so they are forced in the roller surface owing to the role of electrostatic force, with the rotating feed roller, the non-conductors enter into the back of the roller, and are unloaded under brush, Then they are collected in the excellent hopper(non-conductors), At last the Semiconductor mineral particles or failed to fully discharge the conductor mineral particles enter into the middle hopper(semiconductor mineral particles).

The main Technical Parameters of Double roller electrical sorter machine
(Grounded roller electrode):
Quantity: two
Diameter: 120mm
Length: 1500mm
Speed: 120, 160, 200, 300, 400, 500r/min
120, 160, 200, 300, 400, 500 turn/min
Corona electrode: The diameter is 0.3mm, and each roller has one.
Deflection electrode: The diameter is 40mm, and each roller has one.
Operating voltage: 0~45kv, and the input is negative.
Particle size of mineral: Not more than 3mm.
Processing ability: 0.5~3 ton/hour.
Transmission power: 1.1~1.5kw, Speed variable motor.
Heating power: Y_4.5kw/_13kw.
Grounding resistance: Less than 10 Ohm.
Material heating method. Manual/Auto.
Host dimensions:
Length: 2090mm
Width: 1020mm
Height: 2855mm
Host weight: 1.9ton

The main Technical Parameters of Four roller electrical sorter machine
Quantity: Four
Diameter: 120mm-220mm
Length: 1500mm
Speed: 0-500r/min
Corona electrode: The diameter is 0.3mm~0.5mm, and each roller has one.
Deflection electrode: The diameter is 40mm, and each roller has one.
Operating voltage: 0~45kv,and the input is negative.
Particle size of mineral: Not more than 3mm.
Processing ability: 0.5~3 ton/hour.
Transmission power: 1.1~1.5kw, Speed variable motor.
Heating power: Y_4.5kw/_13kw.
Grounding resistance: Less than 10 Ohm.
Material heating method. Manual / Auto.
Host dimensions:
Length: 2090mm
Width: 1020mm
Height: 4500mm

Host weight: 2ton.

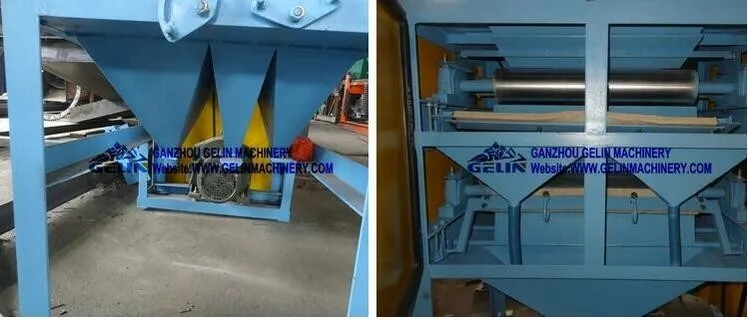

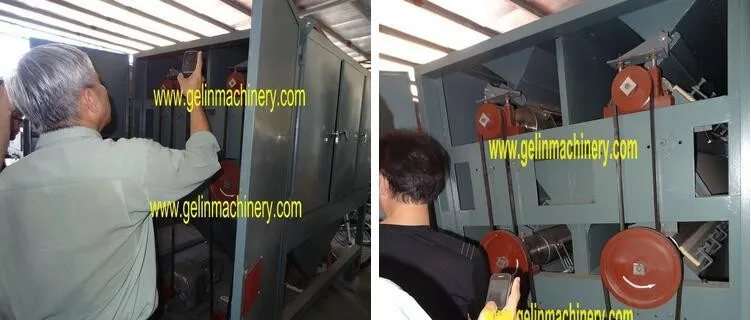

Four Roller Electrical Sorter is formed mainly by ore equipment, grounded roller, electrode, corona electrode, deflection electrodes, divided mineral board, high voltage electron genetator and so on.

Zircon ore, rutile, monazite, ilmenite, tin, gold etc.

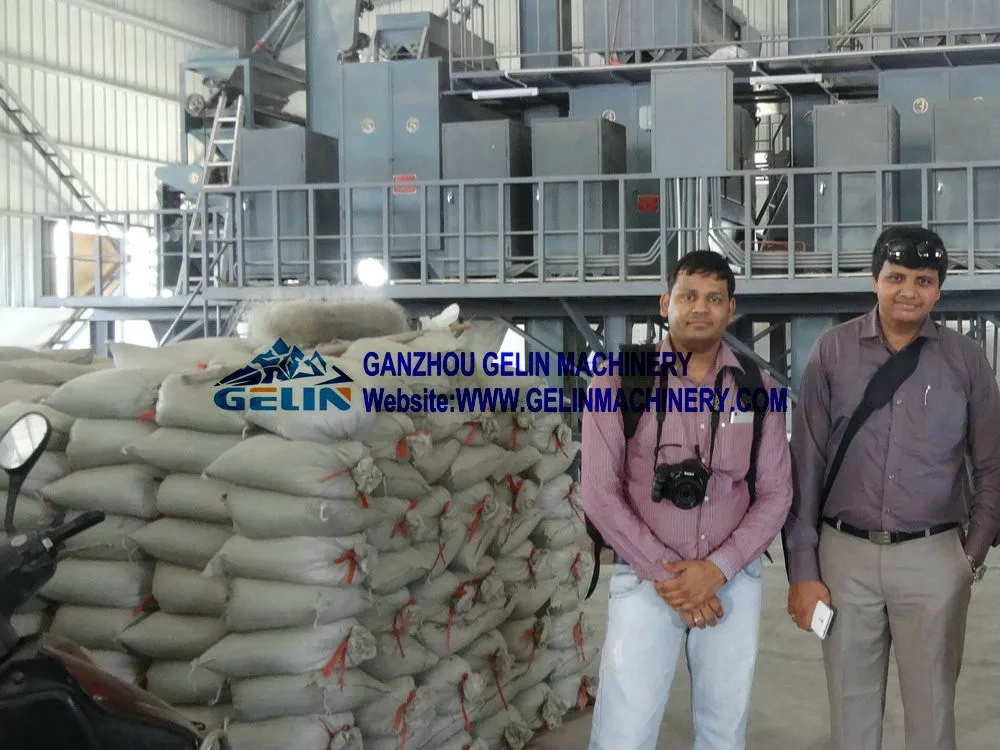

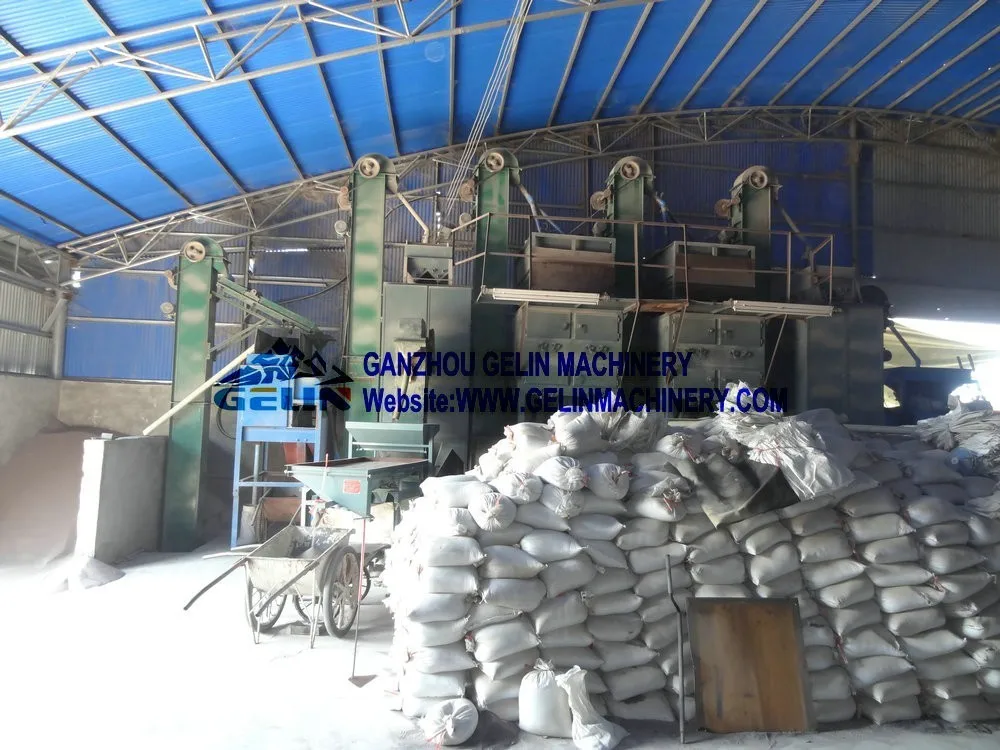

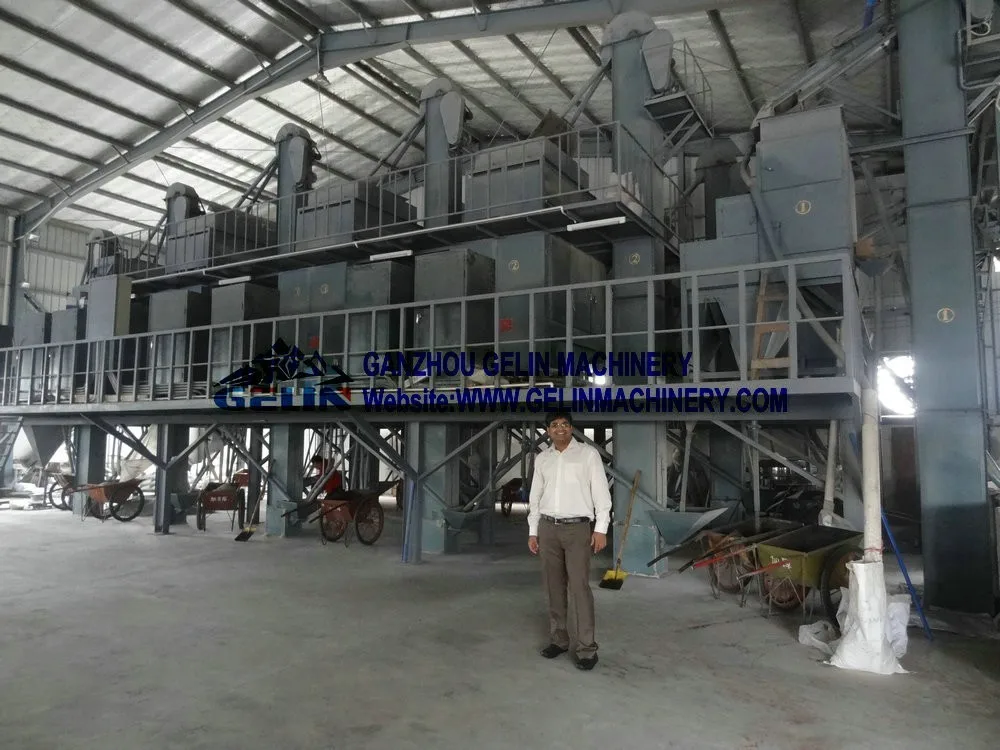

Our equipments used in large scale zircon, rutile, ilmenite minerals sand project:

Related Product

- Ball Mill

It is a key equipment to grind the crushed materials and widely used in powder-making production line.

- Jaw Crusher

Jaw Crusher is mainly used to crush kinds of mining stones primarily.

- Gold Shaking Table

It is a mine separation device for fine minerals working by gravity.

Our Company

Ganzhou Gelin Mining Machinery Co., Ltd is an expert manufacturer of mining machines in China. Our company is located in Guzhang Industrial Zone, Shicheng county, Jiangxi province, covering an area of over 30000 square meters, having more than 30 sets of heavy processing equipment and with an annual outpurt of more than 2000 sets of mining machinery.

Experienced mining machinery manufacturer

Our distinctive prodcts include shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, feeder, classifier, ore washing machine and lab equipment ect. Our machines are popular in separating GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.

--- PRE-SALE SERVICE ---

1.Based on clients’ request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly;

2.Mine sample testing is available, we welcome the customer send the sample to you for testing by courier, or, the customer take the sample to our factory for testing;

3. Design and provide the complete processing flowchart;

4. Design & manufacturer products according to clients’ demands.

--- AFTER-SALE SERVICE ---

1.Pre-check and test the products before delivery;

2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;

3.Trace the status of the shipping until the products received;

4.Prepare required documents to let clients pass custom clearance;

5.Dispatch experts to carry out below service on site:
1) Installation & debug of the machinery
2) Train the first-line operators & technical personnel

3) Carry out any other service clients may need

6. Provide technical exchanging & spare parts for life-long term

--- ONE STOP SOLUTION ---

1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;

2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;

3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.

Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.

 A:1). What type is the mining? Is it rock stone? or it is sand?
    2). If rock stone,What is the general particle size(mm) of the raw ore?
    3). What is the handling capacity(tons per hour) you plan to work with?
    4).What is the elements of the raw ore? How much percent % of each minerals?

Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?

A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.

Q: How long is the warrenty of your equipments? Does your company supply the spare parts?

A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.

Q: If i need the complete mineral processing line. is Gelin able to help us build it?

A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.
