Quick Details

  • Condition: New
  • Type: Gravity Separator
  • Production Capacity: High
  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: Gelin
  • Model Number: diamond wash plant
  • Voltage: 110v -380v
  • Power(W): different models
  • Dimension(L*W*H): Different Model
  • Weight: Different models
  • Certification: ISO9001:2008
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: diamond, alluvial gold, placer gold, river sand gold
  • Quality: High reputation
  • Color: Customers' Requirements
  • Material: Manganese Steel

Packaging & Delivery

Packaging Details Export packing standard/nude
Delivery Time 5-28 days

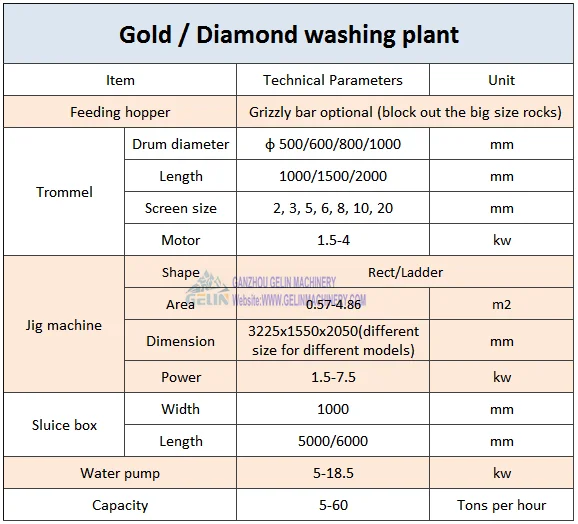

Turnkey wash plant

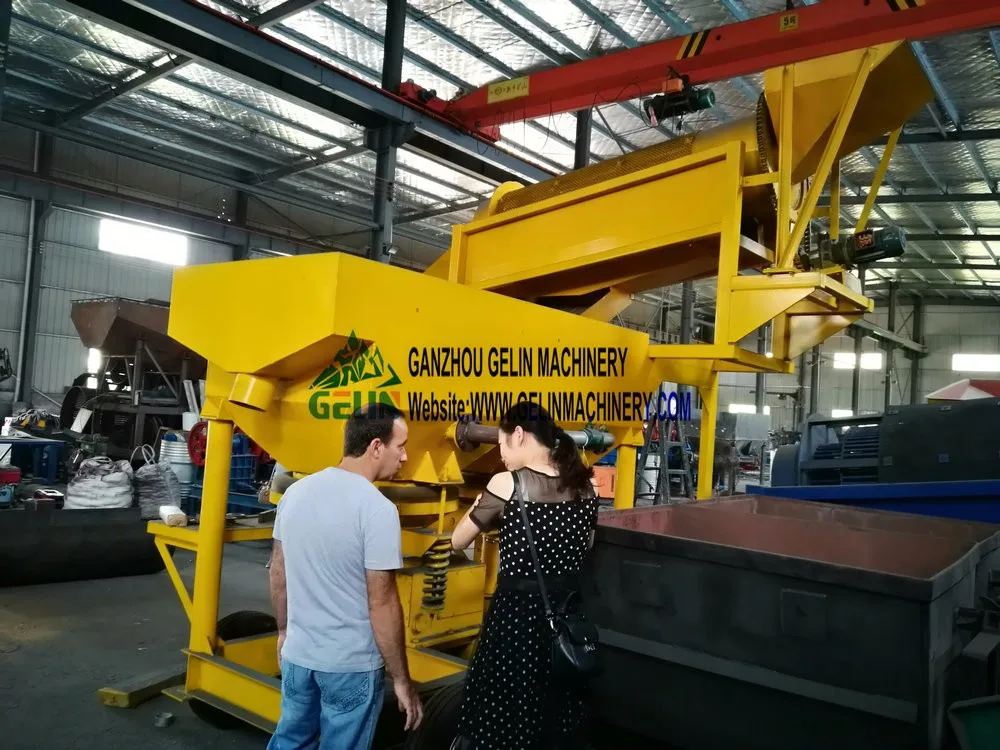

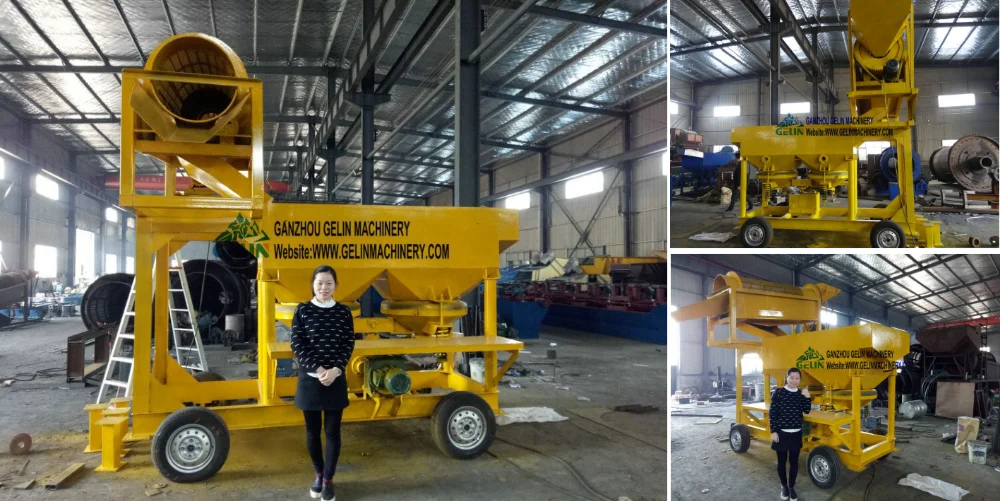

Mobile Diamond Wash Plant

This plant is widely used for mineral separating, especially in the alluvial, river sand, placer, clay deposit and gravel sand gold & diamond concentration. This plant is including the equipment of hopper, trommel screen, jig machine, water pump and sluice box for optional. You could also watch our machinery working videos on our YouTube channel: https://www.youtube.com/watch?v=uTTYAbBhrR4
Features:
1. Modular installation and Turn-key operations.
2. Mobile type can easily move to other place
3. Moter or diesel optional
4. Side of the machine equipped with anti-skidding walkcat for worker stand and easy checking working status.
5. Different capaciy for different customers' request
6. Sluice boxes available upon request at an additional cost
Working Principle:
1. Feed to the hooper of the trommel by hand or excavator;
2. The mineral went to the trommel and will be washed by the high pressure water;
3. The big waste gravels will goes to end of the trommel (you can see from the video);
4. The mineral under the screen size will go to Jig machine for a gravity separation (Screen size can be customized);
5. The Jig machine is saw tooth wave jig machine, which can separate the mineral based on different specific gravity;
6. Due to the big gravity of the gold/diamond, the gold/diamond concentrate will finally separated by Jig machine
7. You can add 1 set of sluice box for a clean concentrate for the tailing.

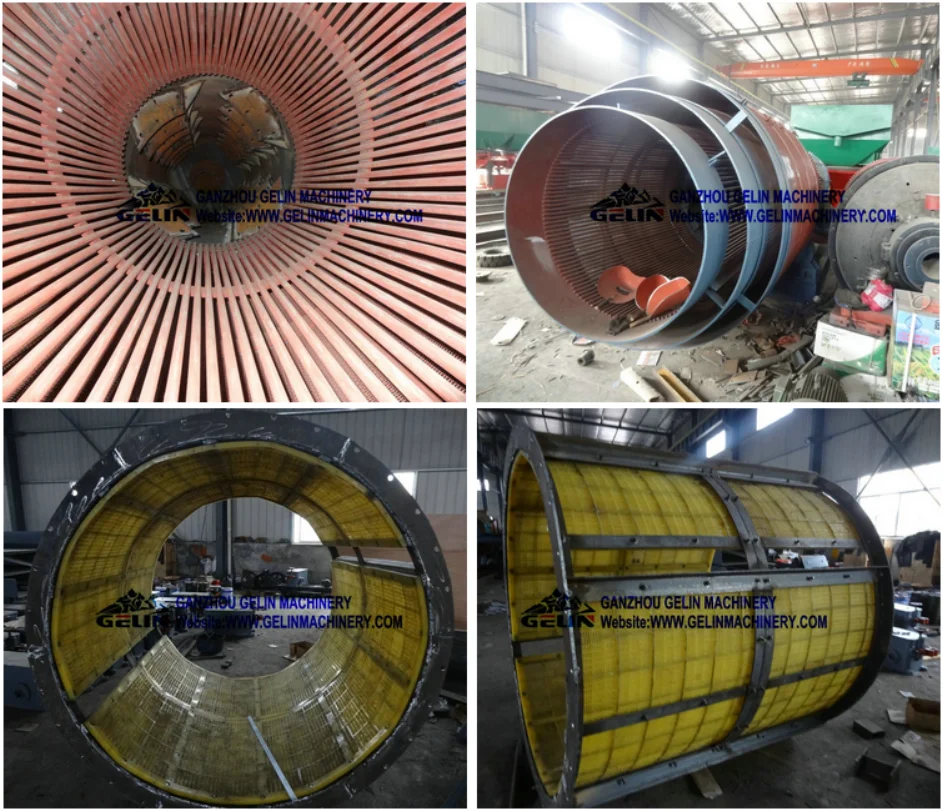

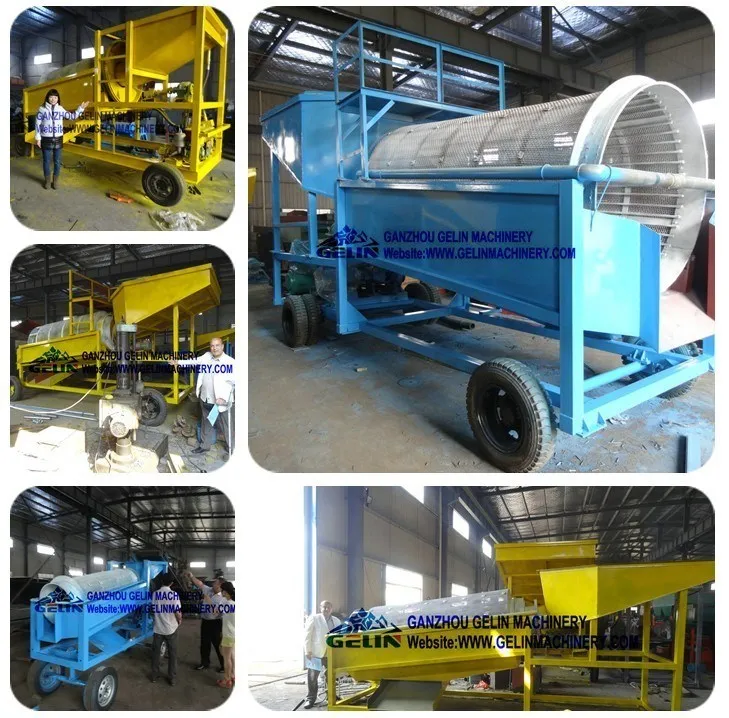

Trommel Screen
The trommel screen provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
The gold washing plant offers the portability of smaller hand fed systems, while maintaining large scale production with a smaller footprint. Once on site, setup takes only minutes and can be accomplished by a single person.
♦ Designed to break up alluvial gravels, clays and sand for Dm Washing Machine
♦ High capacity and high power scrubbing for Drum Washing Machine
♦ The long drum of the scrubber retains material for longer, more vigorous washing for complete separation
♦ One high output electrical motor driving a gear system providing efficient torque
♦ Adjustable rotary speed for Drum Washing Machine
♦ Mechanical sealing of inlet chute – minimal spillage when over feeding
♦ Drive loads absorbed within the drive frame and pivoting drive frame design.Foundations only have to support vertical load and are not critical for alignment ie minimal cost
♦ Shell design less mass than conventional roller supported units–installation craneage requirement reduced

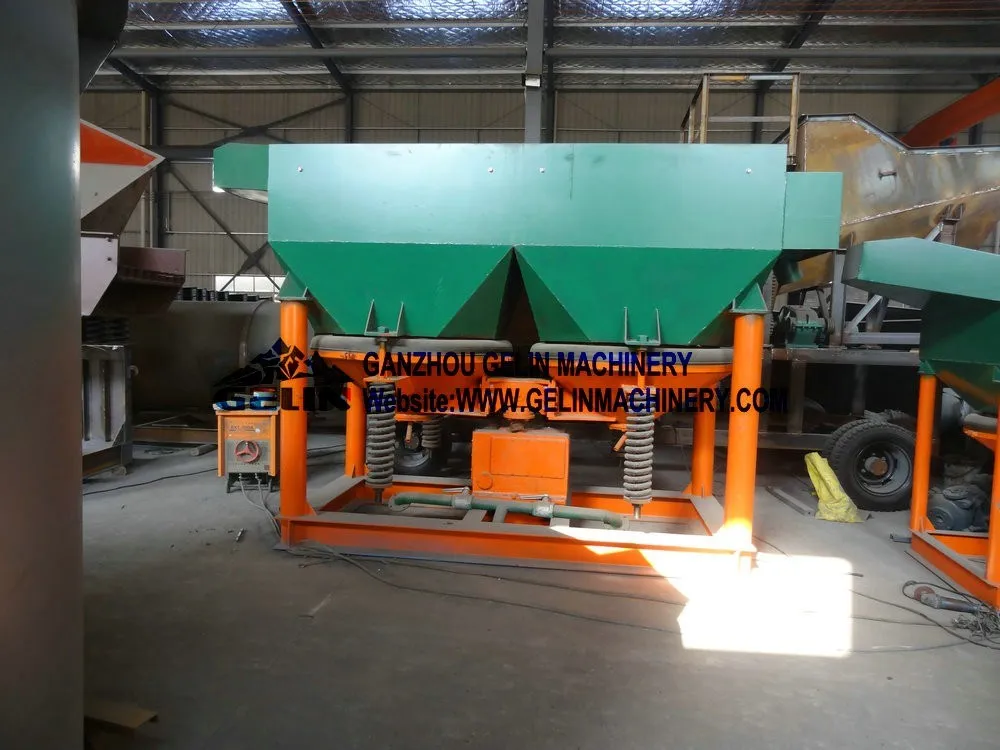

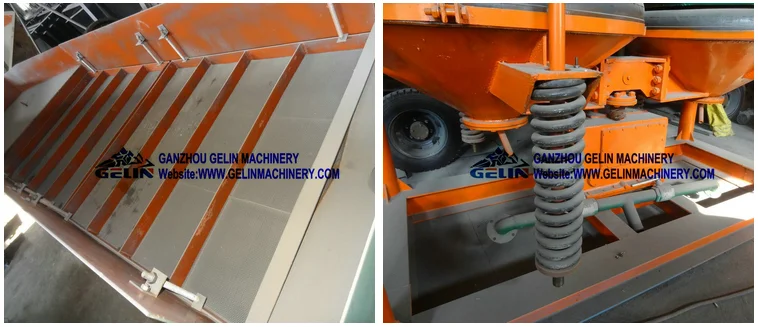

Jig Machine
Jig machine operating recovery rate is higher than the sine wave by the sn: 3.01%, w: 5.5%, pb: 1.63%, zn: 2.04%; water consumption reduced by 30% -40%, covers reduction by 1/3, and the stroke is adjustable. The performance of Saw-tooth Wave Jig has reached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation.
- High capacity
- High concentration ratio and high recovery
- Fabricated with highest quality material
- Easy to install, operate and maintain
- The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
- Saving water 30-40% than ordinary jig
- The pulsation speed very easy adjusted by regulator
- Suitable for roughing and desliming

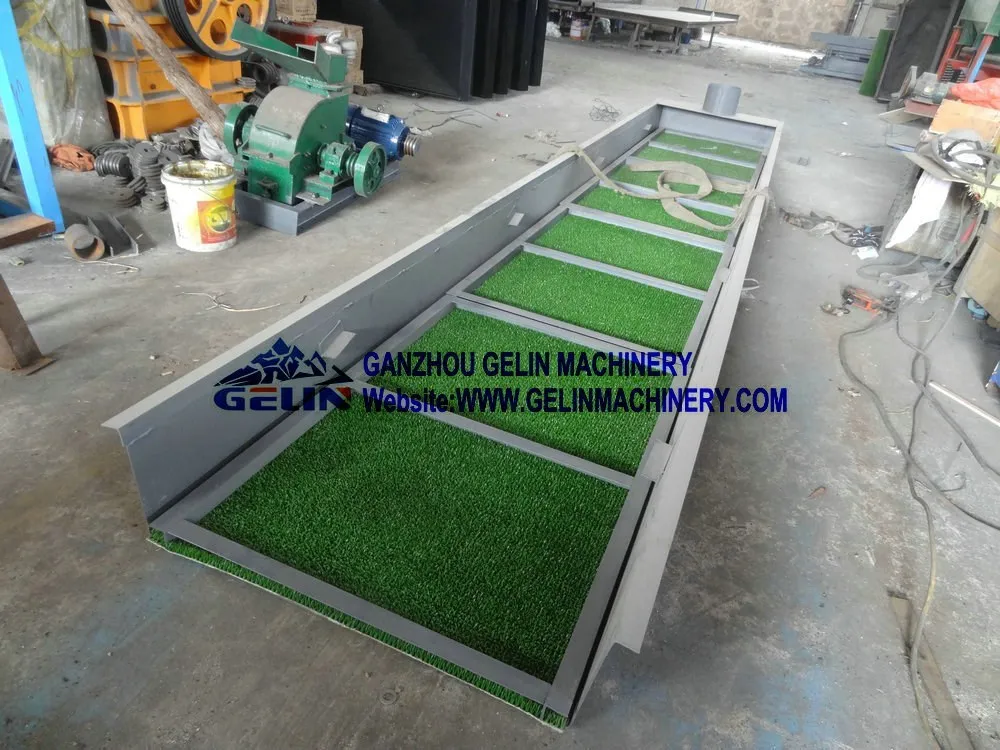

Gold Sluice

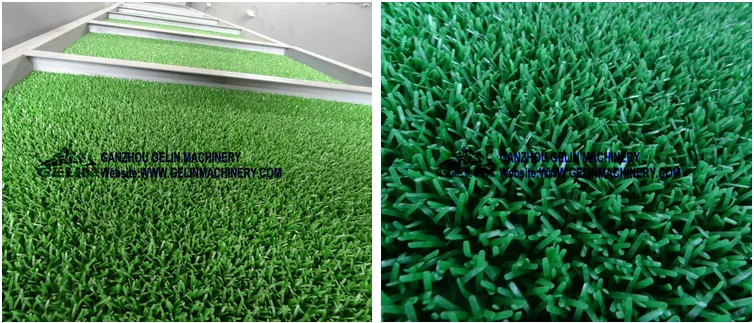

The sluice mat/gold carpet for gold is one of the necessary equipment in the processing of gold mining plant for alluvial gold, placer gold, gold sand, etc.It is also called felt, cohesive gold blanket, gold grass mat, gold rush etc. Just as its name implies, it is used for recovering gold. It usually work with the small sluice box or small shaking table for gold recovering.This equipment has the washing and sieving function. The length of washing part and sievinig part can be custom-made.
1. Easy installation.
2. Long working life.The sticky gold carpet can withstand the sunlight and high temperature directly.
3. Anti-slip,superior resiliency, drainage and scraping dust performance
4. Good adaptability. Can cut easily to fit different size and no requirement to the working place.

The sluice mat/gold carpet/sluice box matting for gold is usually fixed on the sluice box. The width depends on the size of sluice box.
The length of gold mining carpet is usually 2-6 meters, which could be cut according to different requirements.
Width: 1000mm Length: 5000mm Or refer to customers' request

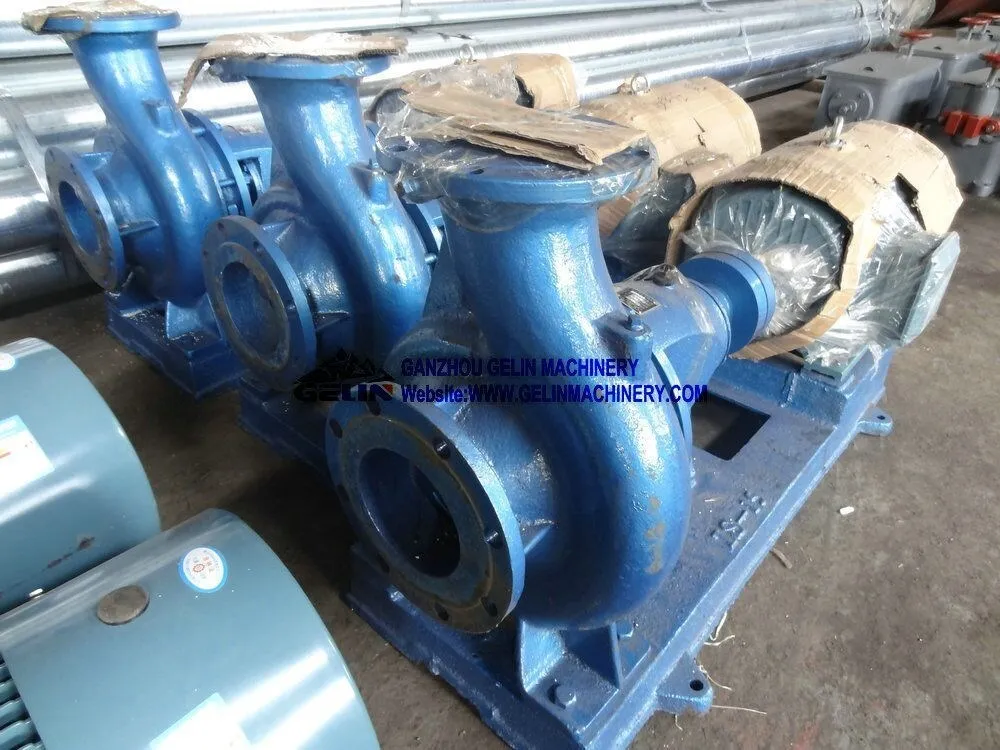

Water Pump
IS series centrifugal water pump is widely used for supplying water to the mining plant and industy and city. It can transport the clean water( T <80℃) and the liquid(physical and chemical character is similar as clean water.

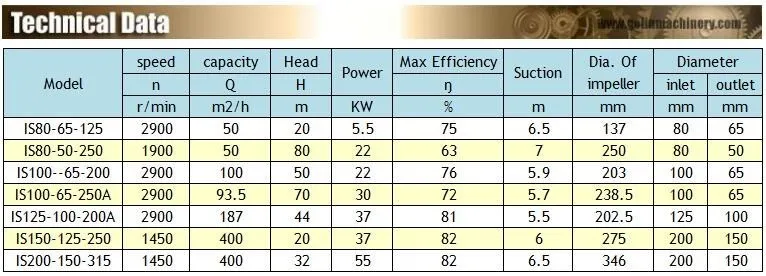

Meaning of water pump model:
* IS100-65-250A
* IS--international standards singles-stage single-suction centrifugal pump
* 100--inlet diameter(mm)
* 65--outlet diameter(mm)
* 250-- nominal ourside diameter of impeller(mm)
* A--first cutting of impeller
